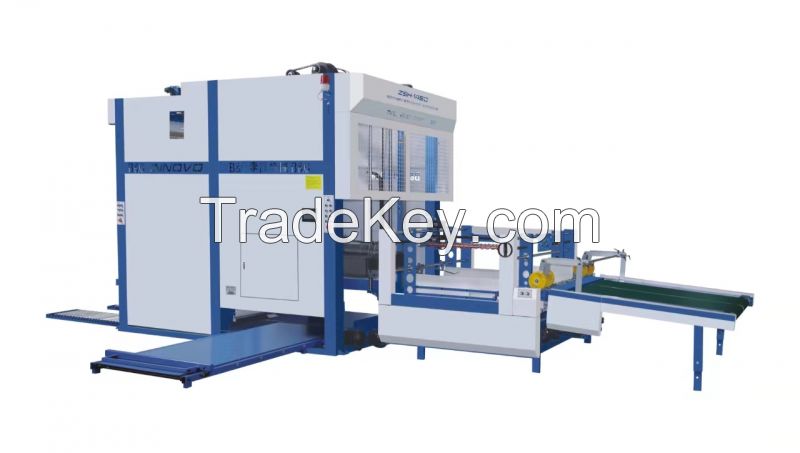

ZST1500 High speed intelligent flip flop stacker By Yiwu Innovo Printing Machinery Co., Ltd.,

Descripción del producto

A.Â The pallet can be pushed into the machine automatically.
B.Â Matching 12,000 pcs/h speed flute laminating machine.
C.Flip mode can be changed to prevent the paper from being curved.
D.Â None stop collection function to improve production efficiency.
E.Â Reduce labor and reduce labor intensity.
F.Â Paper can be patted neatly and stacked into pile.
G.Machine can match with different manufacturers' flute laminating machine.
H.Paper can come out from back or side.
I.Â One -click adjustment (just enter the paper size).
J.Â Video monitoring (optional).
Parameters:

Model	ZST1500	ZST1700	ZST 1900	ZST2200
Max. paper size(mm)	1500*1500	1700*1700	1900*1900	2200*2100
Min.paper size(mm)	450*450	450*450	450*450	450*450
Speed	12000pcs/h
Power	8kw	10kw	16kw	16kw
Machine weight	4000kg	4300kg	4500kg	4800kg
Volatge	380VAC/3P	380VAC/3P	380VAC/3P	380VAC/3P
Dimension(mm)	847023503250	897024503150	1150030503150	1380031503150

Â
Branch Introduction
1. Separator Unit
This part has an acceleration function to quickly separate the sheets. At the same time, operators can pick out substandard products.
2. Count and Stacker
This part can pat the paper neatly and send it out. Paper stacker height can be adjusted by sensor position.
3. Turning Device
This part can send the paper to the delivery table, and the operation of this part is controlled by a servo motor. In addition, we can also adjust the flip mode in the screen.
Â
4. Delivery Table
This part can pat the paper neatly and stack it into a paper pile. It has a non-stop delivery function.

5. Touch Screen
We can set the paper size here, the orientation will be adjusted automatically.
Â
Options:
1. Automatic exit
This floor roller device can automatically feed out the paper stack.
2. Semi automatic tray loader
This device automatically pushes the tray into the machine for easy operation.
Â

País:	China
N º de Modelo:	005
Precio FOB:	( Negotiable ) (Negociable) Obtener el precio más reciente
Lugar de origen:	china shanghai
Precio de pedido mínimo:	-
Cantidad de pedido mínimo:	1 Set
Detalle de embalaje:	wooden package
El tiempo de entrega:	45 days after payment
Capacidad de suministro:	20 Set per Month
Tipo de pago:	L/C, Western Union, Money Gram
Grupo de productos :	Flip flop stacker
