1. Basic Information of the Product:

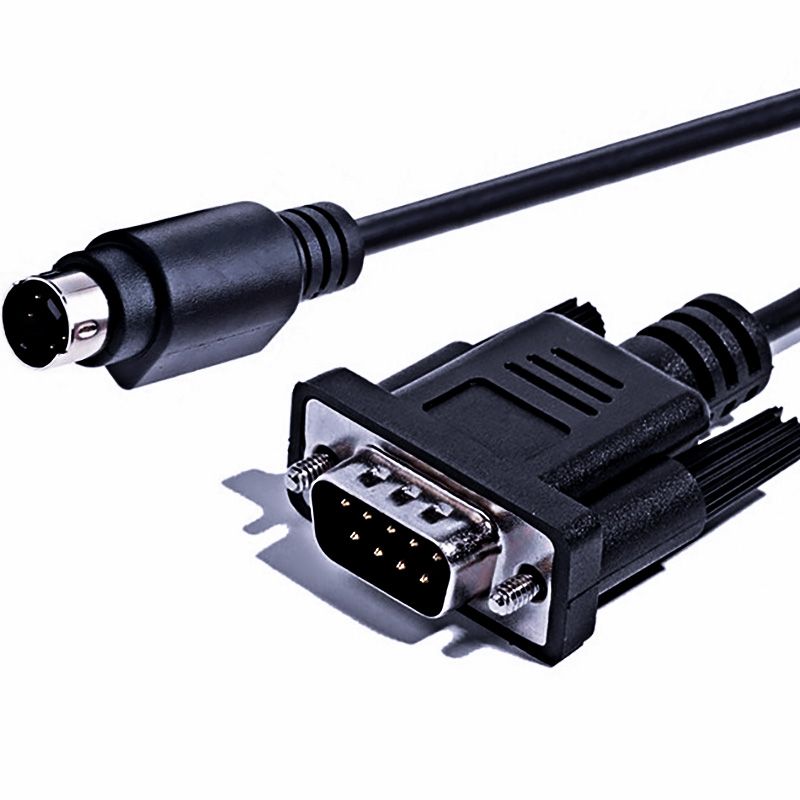

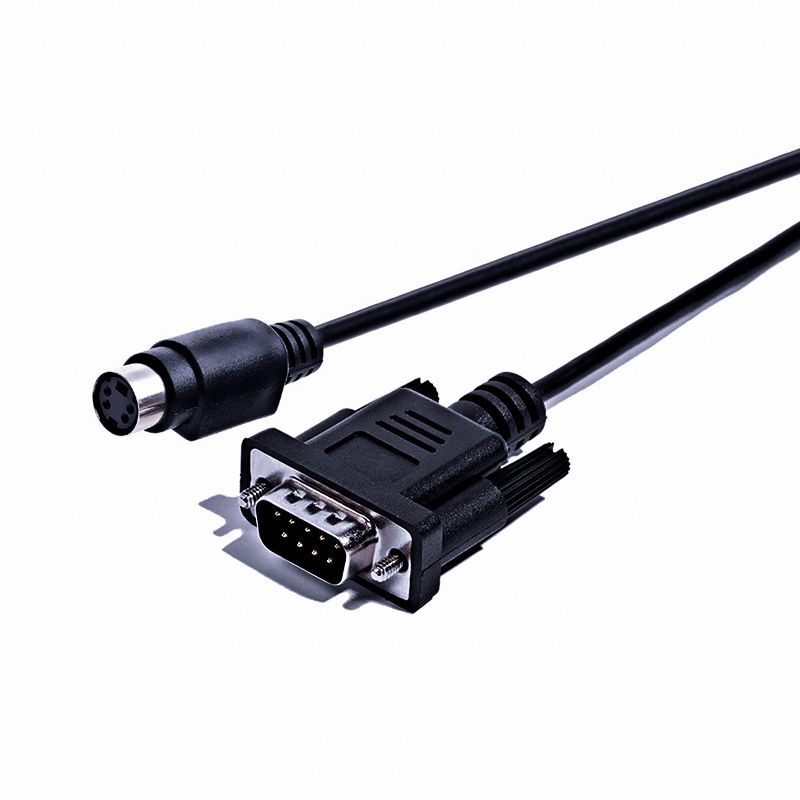

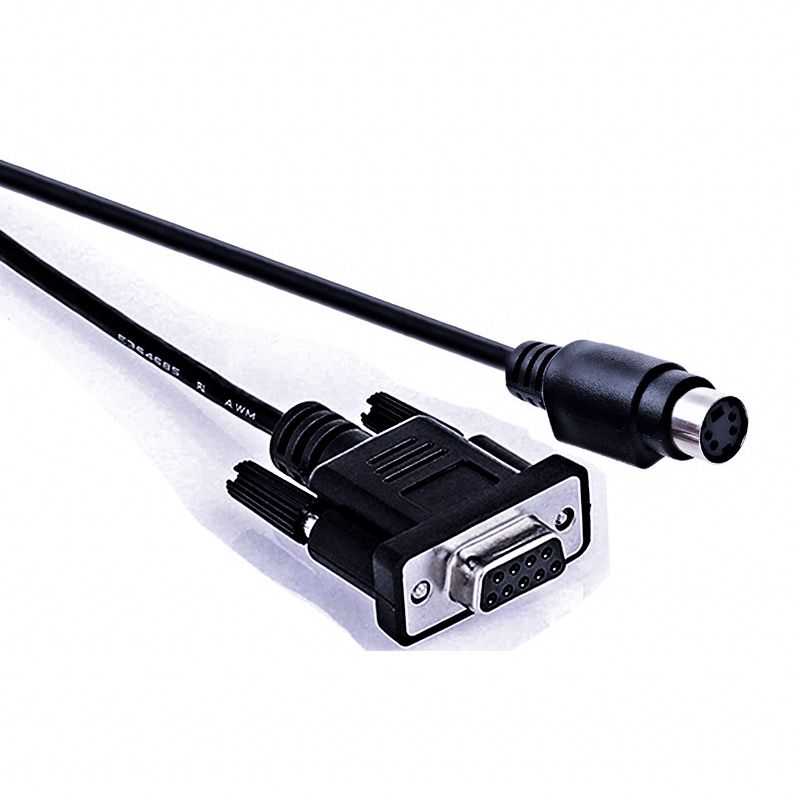

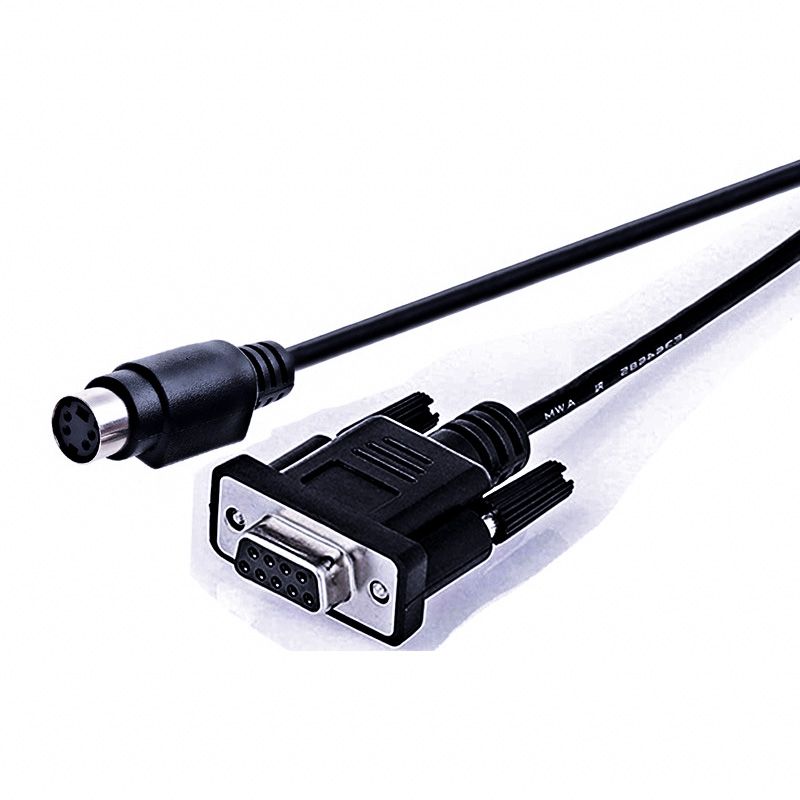

1.1 Product Name:
MINI DIN 4PIN Male to DB9 Male RS232 Signal
Adapter Connecting Cable
MINI DIN 4PIN Male to DB9 Female RS232 Signal
Adapter Connecting Cable
MINI DIN 4PIN Female to DB9 Male RS232 Signal
Adapter Connecting Cable
MINI DIN 4PIN Female to DB9 Female RS232 Signal
Adapter Connecting Cable
1.2 Length: Customizable from 10CM to 5 meters
(such as 20CM, 25CM, 38CM, 4.75 meters, etc.)
1.3 Wire Specification: The core wire materials
we use are all pure copper or tin-plated
oxygen-free copper.
There are several commonly used types:
1.3.1 2Cx22AWG+OD:3.5MM+PVC+Black. This type is
mainly used for devices to pass a current of
2A-3A for charging.
1.3.2 2Cx24AWG+OD:3.5MM+PVC+Black. This type is
mainly used for charging devices with a current
of 1A-2A.
1.3.3 4Cx28AWG+OD:3.5MM+PVC+Black. This type is
mainly used for charging devices with a current
of 300mA-500mA and data transmission.
1.3.4 2Cx28AWG+1Px28AWG+Aluminum
Foil+Braiding+OD:3.5MM+PVC+Black. This type is
mainly used for charging devices with a current
of 300mA-500mA and data transmission. It is
also anti-interference and is generally used
for long wires and devices with high
requirements for signal transmission.
1.3.5 If customers are not satisfied with the
above types, corresponding wires can be
customized according to their requirements.
2. Testing:
2.1 100% short circuit, open circuit, and
misalignment test;
2.2 Insulation impedance test, DC5V, 5MΩ;
2.3 Conductance impedance test: 3Ω; DC high
voltage: 300V
2.4 AC withstand voltage: 100V
3. Product Certification:
3.1 RoHS and CE certifications.
4. Packaging:
4.1 Conventional Packaging: Each cable is
packed in a PE zipper bag. PE bag sizes:
8CMx12CM, 9CMx13CM.
100PCS-500PCS are packed in one carton. Carton
sizes: 46CMx30CMx20CM, 30CMx20CMx15CM.
The gross weight of a large carton does not
exceed 15KG, and that of a small carton does
not exceed 5KG.
4.2 Customized Packaging: Different packaging
forms can be customized according to customers'
requirements. We have previously made: paper
box + blister; cardboard + blister; cardboard +
yin-yang bag; airplane box, etc.
Interface Type: DB9-MD4P
Function: Data transmission + charging
Converter Type: Adapter/Connecting Cable
Type: Serial Port Cable
Connecting Cable: VGA Cable
Applicable Devices: Personal Computers
Process: Welding + Injection Molding
length: 10CM to 5 meters, customizable
conductor: Copper
Short circuit/Open circuit test: 100%
Insulation impedance test: DC5V, 5MΩ
Conductance impedance test: 3Ω
DC high voltage: 300V
Product certification: RoHS and CE
certifications
OEM: Supported
Applicable device: Computer
AC withstand voltage: 100V
Mini DIN4 to DB9 RS232 Signal Adapter Cable
DIN4-Pin Male/Female to DB9 Male/Female
Serial Cable
Industrial RS232 to DIN4-Pin Connection
Harness
