Brief Introduction：
Our product is made of double-sided coated PVC fabric(multiple
specs available). The fabric has been processed with PVDF method
and have the properties of self-cleaning, mould proof, extra
soft, UV retardant, anti-aging, fade retardant and flame
retardant to DIN 4102 B1, M2 standard.
For the aspects of framework, we applied Hard pressed extruded
aluminium 6061/T6 (13HW, coating layer thickness 10μm-15μm which
ensure the aluminium structure have 20+ years service life.
Besides, all the steel components are made of Q345 high strength
hop-dip galvanized steel which have 20+ years service life.
Quick Details
| plastic film and PVC bag |
| 10-30 days |
1. Specifications:
| Span width | Side height | Ridge height | Bay distance | Longest component | Main frame profile |
| 8m | 2.5m | 3.9m | 3m | 4.2m | 84×48×3mm |
| 9m | 3m | 4.5m | 4m | 4.9m | 84×48×3mm |
| 10m | 3m | 4.5m | 5m | 5.4m | 84×48×3mm |
| 15m | 3m | 5.5m | 5m | 7m | 168×88×3mm |
| 18m | 4m | 7m | 5m | 9.2m | 205×112×5mm |
| 20m | 4m | 7.2m | 5m | 10.8m | 205×112×5mm |
| 21m | 4m | 7.4m | 5m | 10.8m | 205×112×5mm |
| 25m | 4m | 8m | 5m | 7m | 205×112×5mm |
| 30m | 4m | 8.5m | 5m | 7.7m | 259×115×5mm |
2. Material:
2.1 Framework
Extruded Aluminum 6N011/T6 (13HW);
2.2 Roof cover
PVC double side coated polyester textile (850kg/m2); water proof; UV resistant; flame retardant to DIN4102 B1, M2.
3. Features:
Maxallowed wind speed: 80km/hour
Allowed temperature condition: 30 degree Celsius~+70 degree Celsius
Easy to set up and dismantle
No any support pole inside, 100% room is available
Sizes can be customized
4. Optional accessories are
wooden floor, glass door, glass wall, PVC hard wall, ground anchors, sidewalls with PVC transparent window, rain gutters, decoration ceilings and inside curtain.
All our tents are manufactured strictly according with the technical parameter in European safety standard.

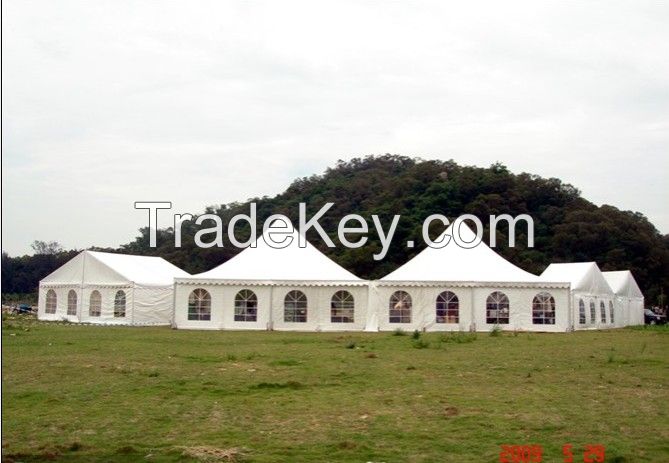

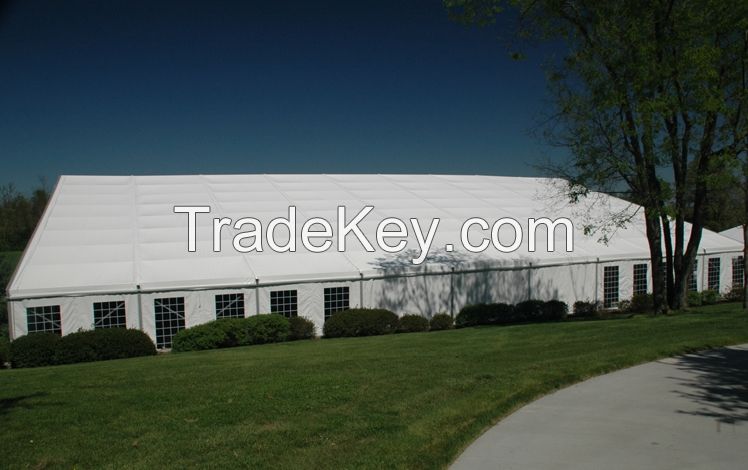

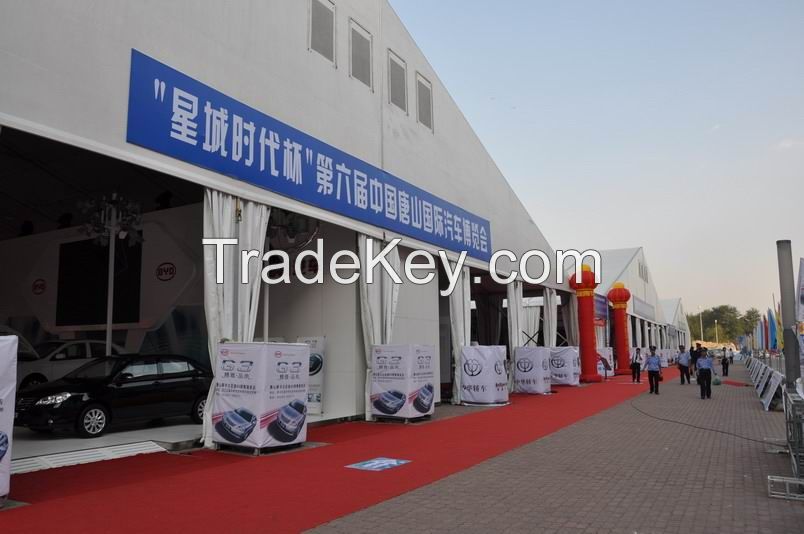

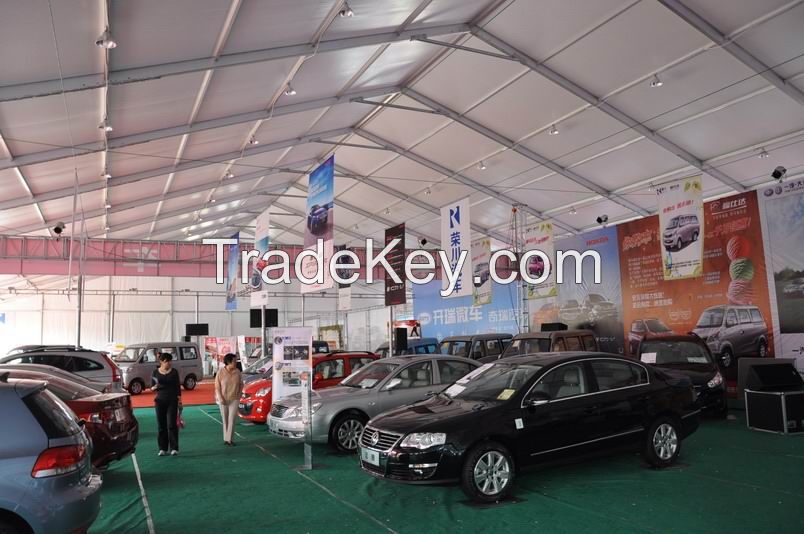

Our tents are widely used for parties, exhibition, wedding,
storage, corporate, functions, etc.

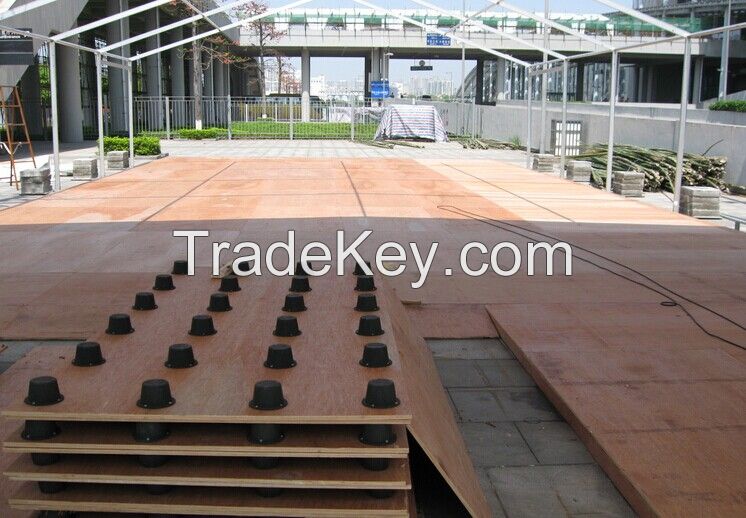

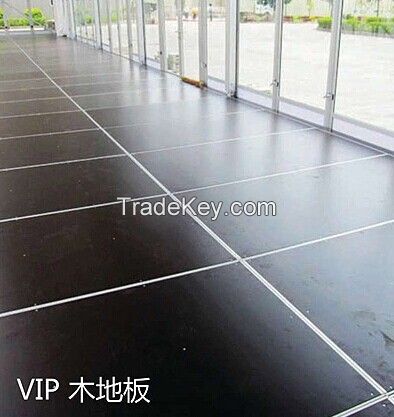

Images of flooring system:

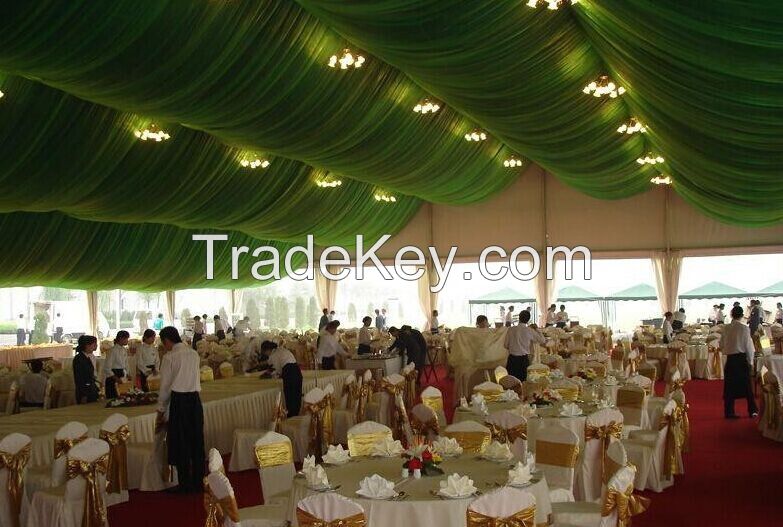

Image of lining system:

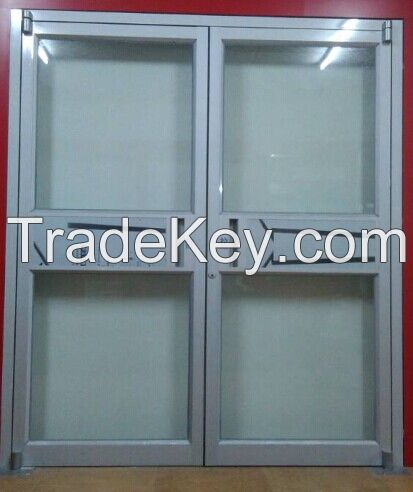

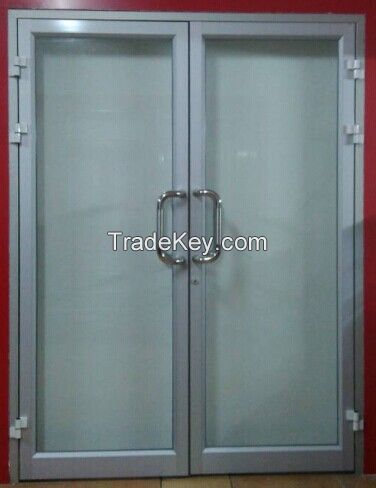

Images of glass door:
