Baggage scanner - big tunnel type x-ray screening system - cargo x-ray scanner - luggage x-ray machine -ModelSX100S

Descripción del producto

TOPTECHEScompany is a leading manufacturer of x-ray scanner, air cargo x-ray inspection system, x-ray machine, large cargo scanner and x-ray inspection vehicle system.

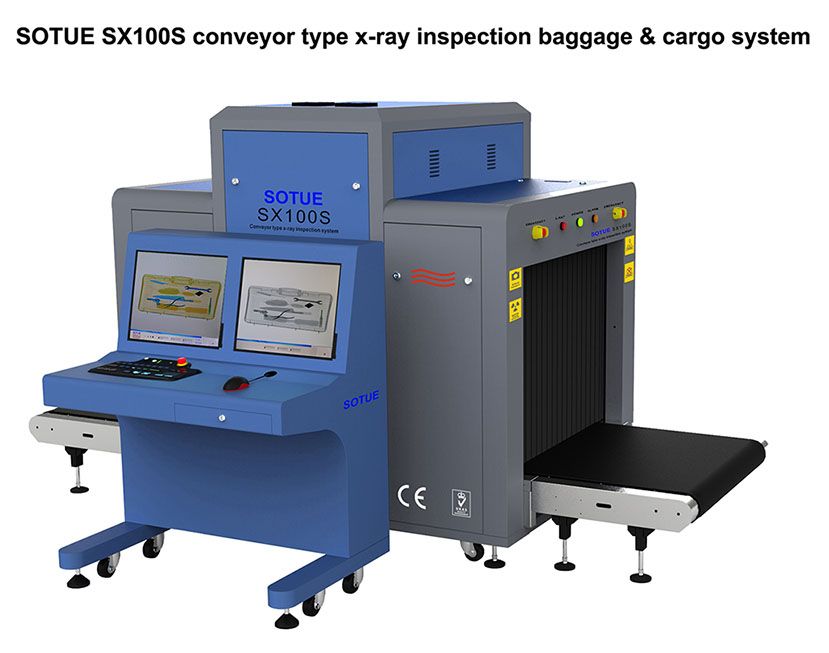

SOTUEmodelSX100S conveyor type x-ray inspection baggage, parcel and cargo system machine - x-ray scan luggage machine


ModelSX100S tunnel type x-ray inspection baggage and parcel system is used for explosives and suspicious dangerous goods inspection, can be installed in airports, bus & train stations and so on for inspection, widely used in airports, bus and train stations, troops, public security, armed police, Customs, postal parcel inspection and other security departments for security checks, etc..

ModelSX100S products have been exported to Iraq, Spain, Nepal, Congo, Iran, Syria, Libya, Russia, India, Indonesia, Georgia, Turkey, Barbados, Uzbekistan, Laos, Philippines, Oman, Slovenia, Croatia, Switzerland, Romania, United Kingdom, Luxemburg, Moldova, Sweden, Bolivia, Brazil, Italy, Canada, Columbia, Algeria, Morocco and so on for local clients' uses. We have provided design & OEM production for some customers in Japan, the United States & Europe for many years.

Relative humidity: 10 to 95% non-condensing. Power supply: 110V ~ 220 VAC (±10%), 50±3Hz. IP55.

Penetration capacity: 32 ~ 34 mm steel plate, resolution: 38 AWG. Optional: penetration capacity: 38 mm steel plate, resolution: 38 ~ 40 AWG.

Optional: Input conveying length: 1,000 mm, exit / output conveying length: 2,500 mm.

Feature:
1. Use the standards as references, when the machine inspects the goods and finds that there are differences, then it will give out a sound and light alert. Two standard 19" monitors and one monitor console.

2. Optional: Network interface, it can connect local area networks and support multi-terminal inspection baggage simultaneously.

3. Safer ray: x-ray under automatic control to avoid the leakage.  4. Turn off or turn on by a key control, its operation is very simple.

5. Image function: can clearly observe and enlarge images. Threat Image Projection (TIP) / display: such as, guns, knives, bullets, bombs, pistols and so on. Work status display.
It is a most widely used system for Aviation Checkpoint and provides outstanding threat detection. Density Threshold Alert (DTA) security feature. Language version: English or French.

6. Automatic checking and recovery function. Date and time display. Luggage count. Emergency stop.

X-ray generator:
Orientation: vertically upward. Tube current: 0.5 ~ 1.2 mA ( adjustable ). Anode voltage: 140 ~ 160 KV ( optional: 160 KV - 200 KV ). Angle: 80 degrees.

Generator Cooling / Working periods: sealed oil bath with forced air of 100%. High penetration power to all metals.
Optional: modelSX100S dual view system.

Image performance system:
X-ray sensor: L type photo-diode array detector, 16 Bit. Two high resolution 19 LCD dual monitors. Color quality: 24 Bit real colors. Edge enhancement: object contour edge is more distinct, and super image enhancement: image detail is more distinct.

Enlarging: function of enlargement image, and high penetration strength display: increase brightness of dark areas in the image to display an object. Low penetration strength display: increase the contrast to display it distinctly.

Brightening / dimming: increase brightness of image / decrease brightness of image. Image recurrence: can display previous twenty images and process any one of them. Image restoration: restore an image to initial status at the time of stopping the conveyor. Image storage: real time to store any image and process it in operation status.

Zoom: enlargement Image to 32 times, optional 64 times. Standard storage image: 50,000 images, optional 100,000 images.

Installation standard hard disk: 500 GB. Display memory capacity: 2.0 GB. Processor CPU: Intel Celeron, optional CPU: ARM Cortex A9. Contrast sensitivity: Min. 24 levels. Image display: Min. 1280 x 1024 bits/pixel, Min. 4096 gray levels. Cycle operation: 100% without warm-up time.

Multi-energy function:
1. Multi-energy color: display organic material for orange, display inorganic material for blue and display mixture material for green.

2. High energy / low energy: it displays two energy types, high energy stands for metal etc. and low energy stands for nonmetallic. Assistant inspection functions of drugs and explosives: help to detect such dangerous material as drugs and explosives, etc..

Technical standards:

1. Conform to EN 60950-1:2006+A2:2013 product safety international standard.  2. Conform to EN 61010-1:2010 product safety international standards.
3. Conform to EN55011:2016 product safety international standard, conform to EN61000-6-2:2005 product immunity international standard.

4. Conform to EN61000-3-2:2014 and EN61000-3-3:2013 product safety international standards.
5. European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard and Transportation Security Administration (TSA) standard.
