Video Management Middleware Platform

Aggregates all the network video rescourses

Product Overview

Daxun digital video management middleware platform is a software system for adding video surveillance and video management features to customers application. It implements functionality for acquiring, collecting and managing video data from various brands external video devices (IP cameras and encoders), storing video in a video archive, re-streaming video to clients in live mode as well as on demand, providing standard video data to third-party upper level platforms, such as upper cloud, various business platforms of education,transportation etc, for seamlessly integration.

It aims to facilitate the multi-protocol access, stable transmission, storage and retrieval of video resources from multi-brands surveillance devices under complicated internet network environment such as LAN, WAN, VPN,4G/5G network , thus making full use of old devices and sharing video data on a wide scale. So that users do not need to replace the original monitoring equipment and deployment. In this way it greatly reduce the cost of video integration and application for the government and social organizations while meeting the new requirements, and enriches the collection means of social value information.

Key Features

Video retrieval
Daxun digital video management middleware platform (middleware for short) provides several features for working with video that can help you easily add various video sources into the application:

The middleware platform can be set up to work with an RTSP,HLS,WebSocket video source with an URL for example, a synthetic video source like VLC stream server.

The middleware platform provides the integrating application with features of automatic discovery of RTSP, ONVIF devices in the network, as well as accessing the device directly via POST(probe).

The middleware platform offers many protocols (such as ONVIF, GB/T****1,GA/T***0, EHOME/ISUP etc) or integrate devices SDK to easily access the video devices.

It also allows to control PTZ cameras via network.

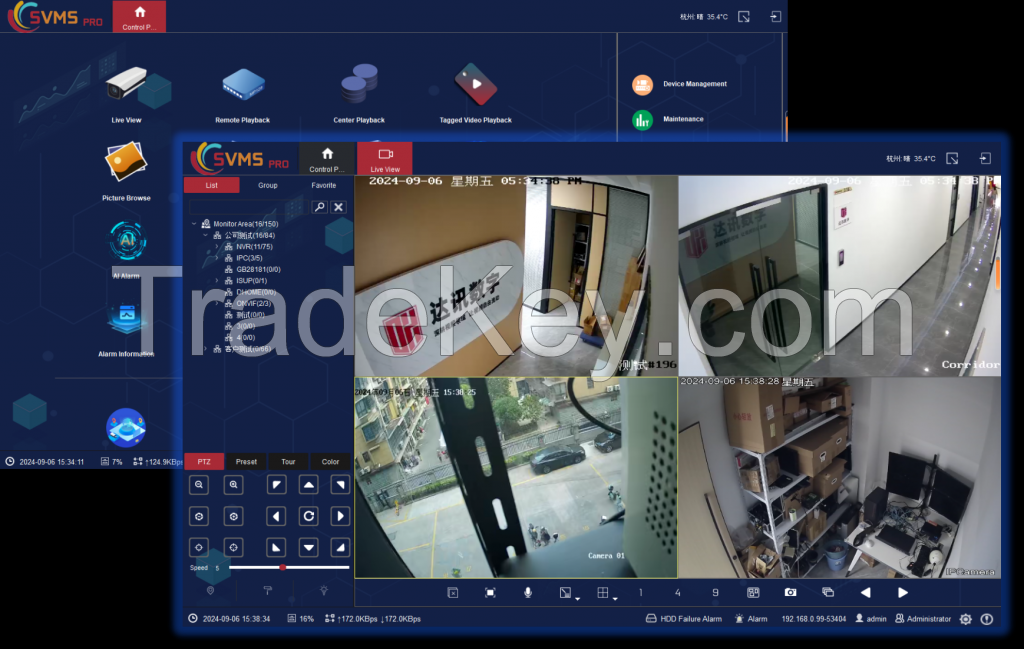

Powerful Video Management

Daxun digital middleware can manage the video devices by standard protocols such as Onvif, RTSP, RTMP,GB/T****1, and by the private protocols of mainstream manufactureres such as Hikvision Ehome/ISUP, Dahua register, XM P2P etc. It also allows the integrating application to manage video archives from multi-video devices, and realize all the video surveillance functions, such as video monitoring, local or network or cloud-based storage options, intuitive E-map display, gathering information on remote objects alarms, quick and convenient search and playback, smart video wall control, network voice intercom etc. It contains a ready video management mechanism available via REST API, while integrating application defines management policy.

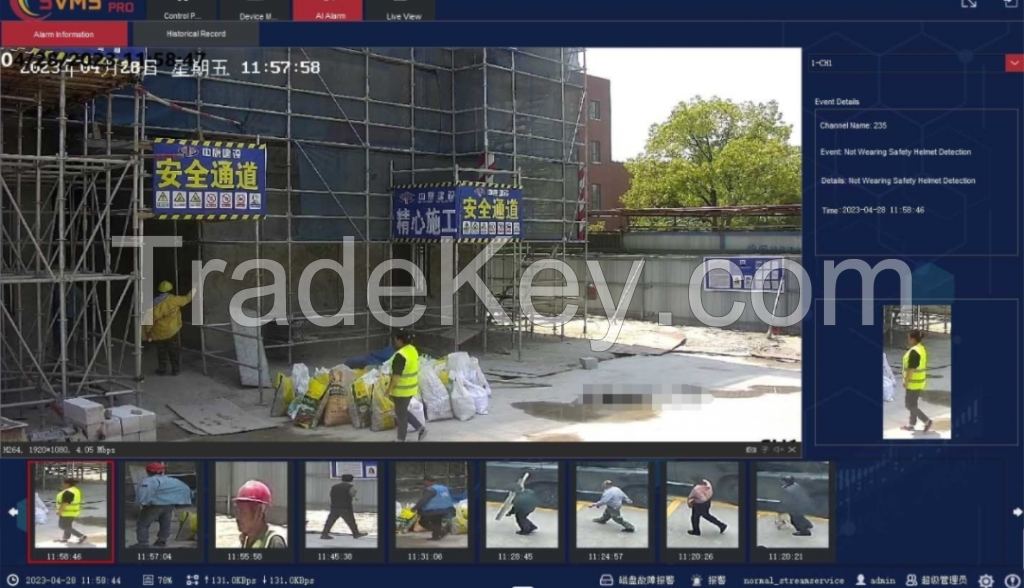

AI analysis video and AI detection events display and search
SVMS Pro perfectly integrates AI box and multi-brands of AI cameras, display real time video analysis from AI analysis devices. Users can perform the event settings, alarm triggering, alarm management, and further investigation with a unified video management software SVMS Pro. SVMS Pro also can push analyzed results to third party platform through WAN or LAN.

Face recognition display
SVMS Pro integrates Daxun Digital face recognition cameras, Daxun Digital AI box, and also can work with any third-party face recognition cameras which support GA/T***0 protocols. It supports face information transmitted through standard GA/T***0 protocol, or through third partys private protocol or SDK which needs to be integrated in advance. It can save and display face recognition results reported by front-end recognition device. Users also can search for face by time, device or keywords. SVMS Pro also can upload face image to the upper-layer third-party platform.

Intuitive Statistics about face, license plates, AI & people flow snapshot data
SVMS Pro Provides real-time trend analytics and statistical reports for face snapshot data transmitted through GA/T***0 protocol.

It offers real-time trend analytics and statistical reports for license plate snapshot data transmitted through GA/T***0 protocol.

Provides real-time trend analytics and statistical reports for AI alarm snapshot data transmitted through AI box.

Provides statistical reports for AI device online and offline status. Provide people flow statistical report on a daily, weekly, monthly, and annual basis, covering visitor demographics (such as age and sex) and movement patterns (entry, exit, or pass-through) based on the data transmitted through AI box or third-part people counting AI cameras.

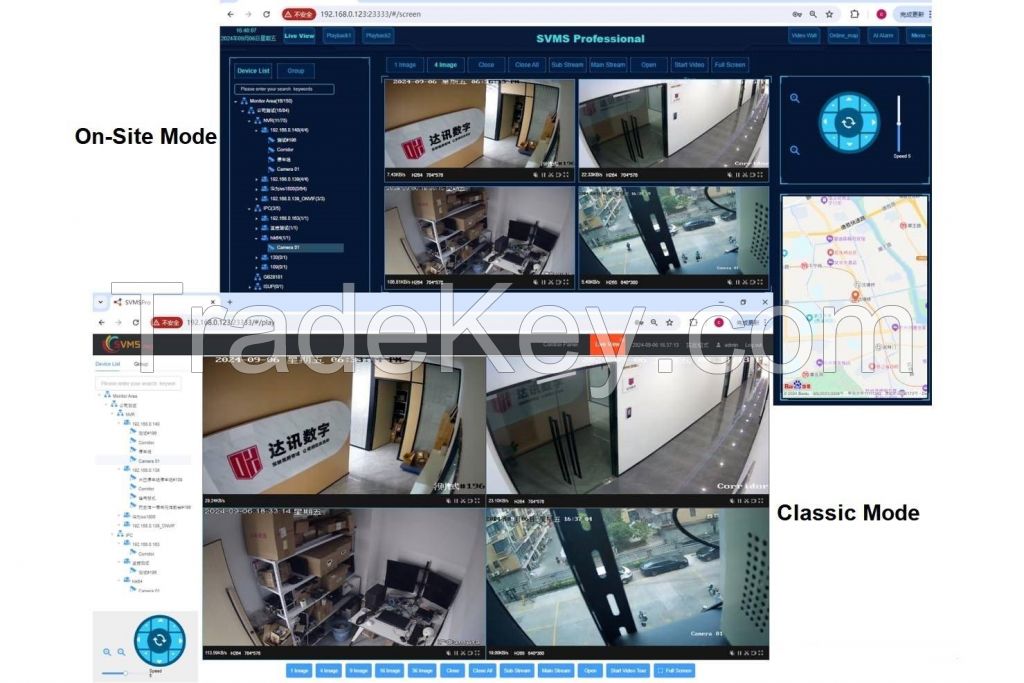

HTML5 ready video
Daxun digital video management middleware platform implements HLS, WebSocket specifications etc making video playback possible on most of popular browsers, and mobile devices and is totally appropriate for live surveillance and PTZ applications.

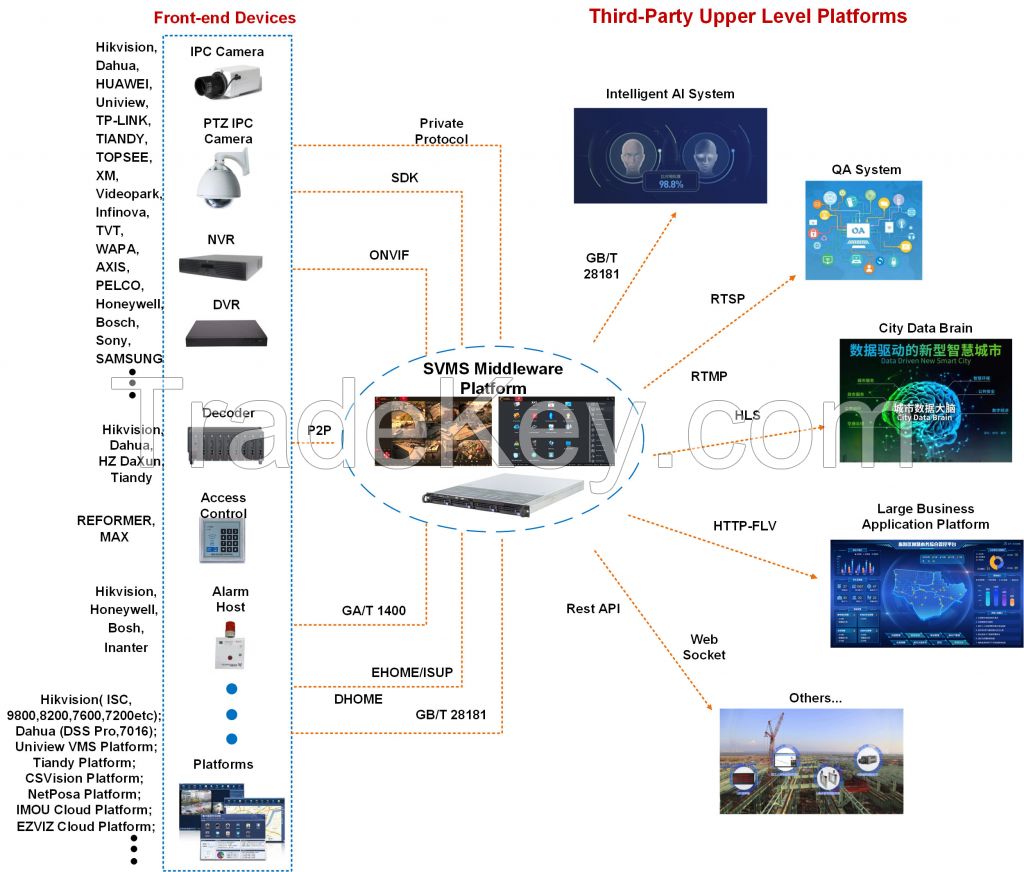

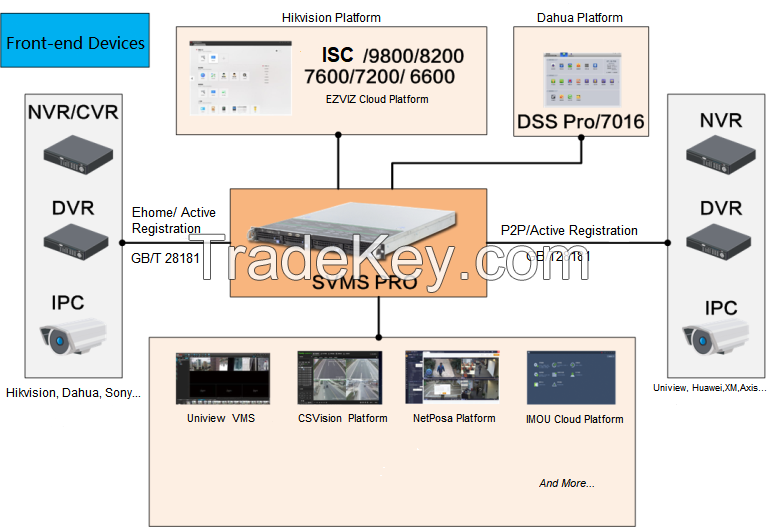

Third-party VMS or third-party industry application system integration.
Daxun digital video management middleware platform allows getting VMS streaming live or recorded video in HTML5 compatible format from third-party VMS servers. It also push multiple protocols such as RTSP,RTMP, HLS, Web Socket,GB/T****1 etc to the upper industry application platform or third-party VMS for seamlessly integration. Middleware is design as the software development kit, to add the video surveillance functionality it implements into third-party application. It provides convienient REST API interface for the simple and and fast secondary development.
