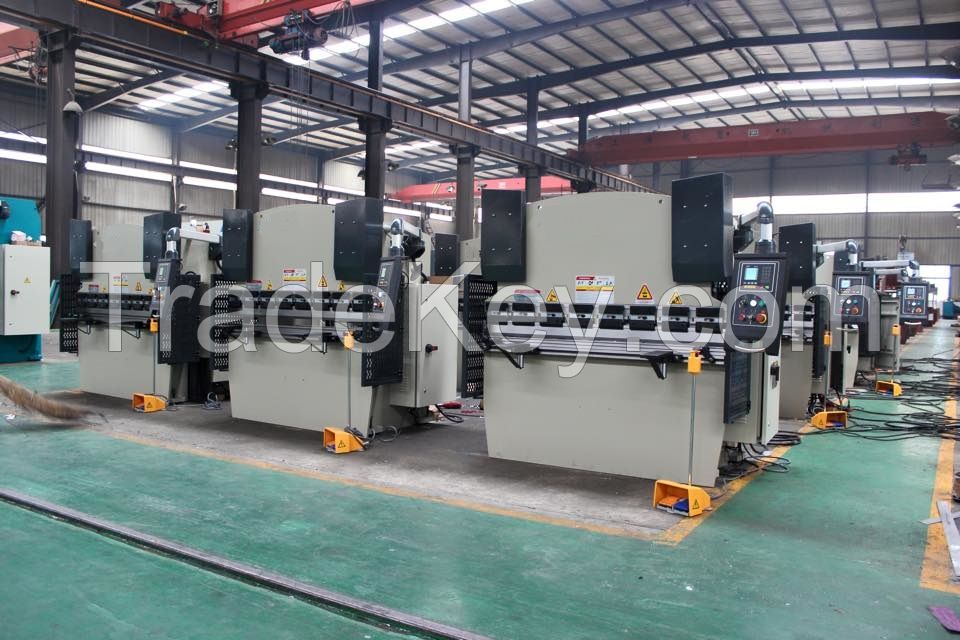

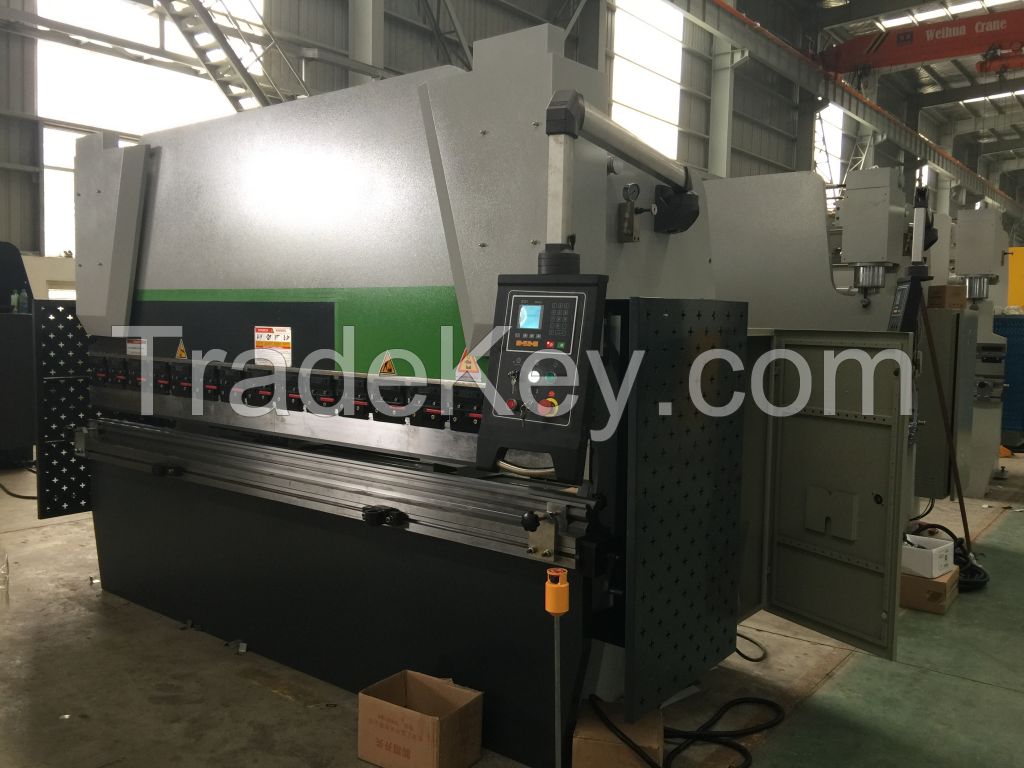

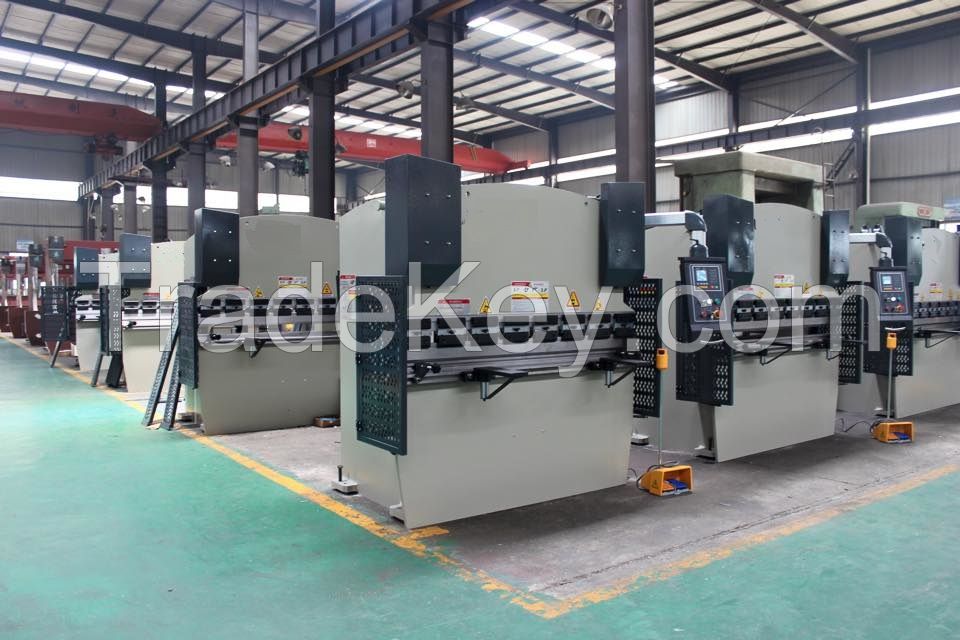

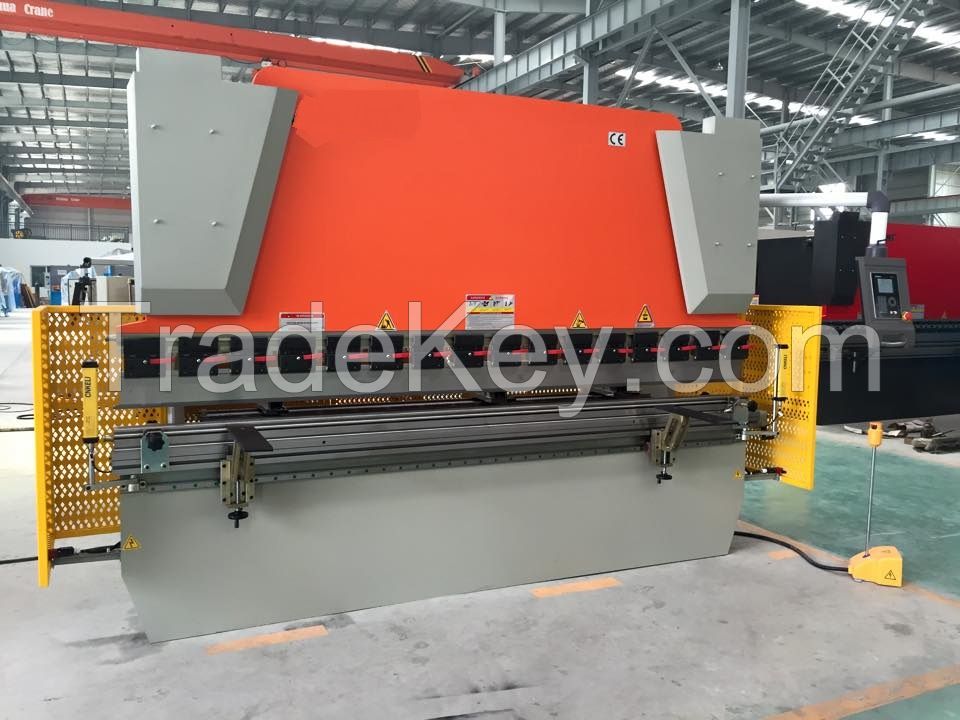

Hydraulic Bender Machine DELEM DA41/58/52S/ DA66T Controller

Precio FOB

Obtener el precio más reciente

9800 ~ 31000 USD / Set ( Negotiable )

1 Set Minimum Order

País:

China

N º de Modelo:

WC67K-60T/3200

Precio FOB:

9800 ~ 31000 USD / Set ( Negotiable )(Negociable) Obtener el precio más reciente

Lugar de origen:

China

Precio de pedido mínimo:

9800 per Set

Cantidad de pedido mínimo:

1 Set

Detalle de embalaje:

Naked Packing/ Plastic Bag/ Plywood Case

El tiempo de entrega:

15 days

Capacidad de suministro:

150 Set per Month

Tipo de pago:

T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal

Grupo de productos :

Press Brake

Contactar ahora

Nanjing TMA Machine CO., LTD.

China

Miembro Básico

Persona de contacto Aliza

905-59,Jianwei, Hanzhongmen Street, Nanjing,China, Nanjing, Jiangsu

Contactar ahora

Especificaciones del producto

Color as per Customer:Voltage as per Customer
Warranty: 2 years:Free Sea Insurance for Cusomer
Estun E21/E200/ Delem DA41/DA66T:CNC/ NC

Descripción del producto

TMA Machine Hydralic PRESS Brake:
Specifications:

Through the following contents, you can learn more about TMA Machine Hydraulic Press Brake (WC*7Y/WC*7K).

TMA Machine Hydraulic Press Brake, including brackets, table and clamping plate, the table placed in the bracket, Workbench from the platen base and base connected by a hinge and the clamping plate, the base of the seat shell, coil and cover, coilplaced in the seat shell depression, the depression at the top covered with a cover. When hydraulic press brake used by the wire on the coil is energized, the gravitational power on the platen, thereby clamping the sheet between the platen and the base. As a result of electromagnetic force clamping the plate can be made into kinds of workpieces, and the lateral wall of the workpiece processing.

Features of hydraulic press brake:
1. Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by ENC**8 Programmable digital controller assuring accurate repeatability. Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
2. New style Digit type manual crowning conveniently mounted on the right side of the bed enabling operator to adjust simply by rotating the dial whilst the analogue digit system indicates the amount of movement.
3. Segmented heavy duty *6° offset top punch is segmented for return bend clearance and incorporates a safety key to stop punch dropping.
4. Multi vee (' V' ) bottom die is made from solid die block design to handle heavy plate, safety edge vee (' V' ) is incorporated in bottom die block.
5. Conveniently mounted control box on pendant for quick swivel and adjustments. Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
6. Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a T slot machined down the total length of the die bed; sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
7. Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
8. Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. Metal master specially design gates to suit safety requirements.
9. Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
*0. Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction. The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.

*1. Reinforced side frames providing addition support strength to machine throat.

País:	China
N º de Modelo:	WC67K-60T/3200
Precio FOB:	9800 ~ 31000 / Set ( Negotiable ) (Negociable) Obtener el precio más reciente
Lugar de origen:	China
Precio de pedido mínimo:	9800 per Set
Cantidad de pedido mínimo:	1 Set
Detalle de embalaje:	Naked Packing/ Plastic Bag/ Plywood Case
El tiempo de entrega:	15 days
Capacidad de suministro:	150 Set per Month
Tipo de pago:	T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal
Grupo de productos :	Press Brake
