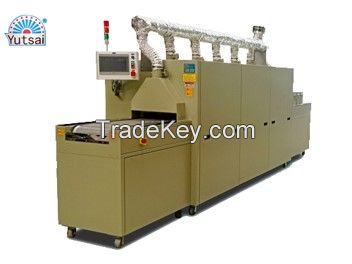

Hot air circulation conveying type drying equipment

Descripción del producto

Product name: Hot air circulation conveying type drying equipment
Style: BCO - 5
Power: AC**0V 3∮ *0HZ *2KV
Material: SUS#**0 stainless steel plate in heating cover
Cover: SS*1 steel powder coating (gray)
Inch method: feeding section ***0mm heating section ***0mm discharge section ***0mm total length ***0mm
Net surface off the ground :(H) **0mm ±*0mm
W***0 x L***0 x H***0mm(approx.)
Heating cover: divided into 5 sections, each with maintenance door to facilitate cleaning and maintenance.
Electric heater: ceramic heater
Heating section: internal size W**0x H**0mm
Heating system: heating body + electric heater
Exhaust hood: two sets of adjustable damper are attached to the inlet and outlet section
Fixed mode: adopt whole set fixed (easy maintenance)
Discharging cooling: discharging section is attached with four sets of adjustable slope fan cooling
Hot air circulation system: circulating tong motor 1/4HP 3∮*0HZ **0V
Speed regulation: frequency conversion machine 1HP5 groups
Motor: multi - wing wind wheel *1/2"5 sets
Method: stepless speed regulation, adjust the circulating air volume
Thermal insulation and thermal insulation system: the inner heating section of the inner layer adopts advanced imported ceramic fiber aluminum silicate thermal insulation and thermal insulation (thickness *0mm) middle layer adopts air insulation
Transmission: transmission motor Wanxin deceleration motor
Transmission network: stainless steel transmission network W**0XL****0mm
Transmission mode: motor reducer A sprocket a transmission network
Speed control mode: Delta frequency control mode
Conveying speed: speed range MAX 0 ~ **0mm/min
Speed meter: VR speed regulation, LED display
Intake and exhaust system: adopt 4 "adjustable air door with filter screen. (every)
Exhaust mode: hot air circulation air supply,4 "adjustable air door forced exhaust (can be connected to the exhaust pipe). (every)
Temperature range: room temperature **0℃ ~ Max. **0℃
Temperature control system: the temperature controller adopts ys***0 temperature automatic control module, PID automatic calculation, film keys, LED digital display, over temperature cutting electric heating, warning light and SCR action can save *0% ~ *0% of electric energy, control accuracy ±0.5℃, temperature equability ±1.5℃, five independent control.
Protection system: 1. There are emergency stop switches in front and rear, independent fuse switches in each heating section and passing current, overload protection and linkage.
2. Overtemperature protection In addition to the main temperature control and its upper and lower limit overtemperature control circuit, another sub-temperature control overtemperature prevention device for the most safe
3. Temperature protector, when the temperature is abnormal, it will automatically cut off the power supply system to prevent accidents.
4. When abnormal occurs, cooperate with abnormal indicator light and buzzer alarm, convenient for operators to eliminate abnormal.
5. The transmission motor is equipped with reverse phase protection to prevent the high temperature of the motor after reverse phase, resulting in bad products and equipment damage.
Control system: man-machine +PLC control, through the operation of touch screen panel drying furnace temperature, air volume, speed and other processes for operation control and monitoring, data can be recorded and traced.
Startup system: automatic startup system and manual startup, automatic cooling and shutdown functions
Features parts: shutdown countdown, automatic power off, power failure manual return device and hand shaking wheel discharge device.
